Description:

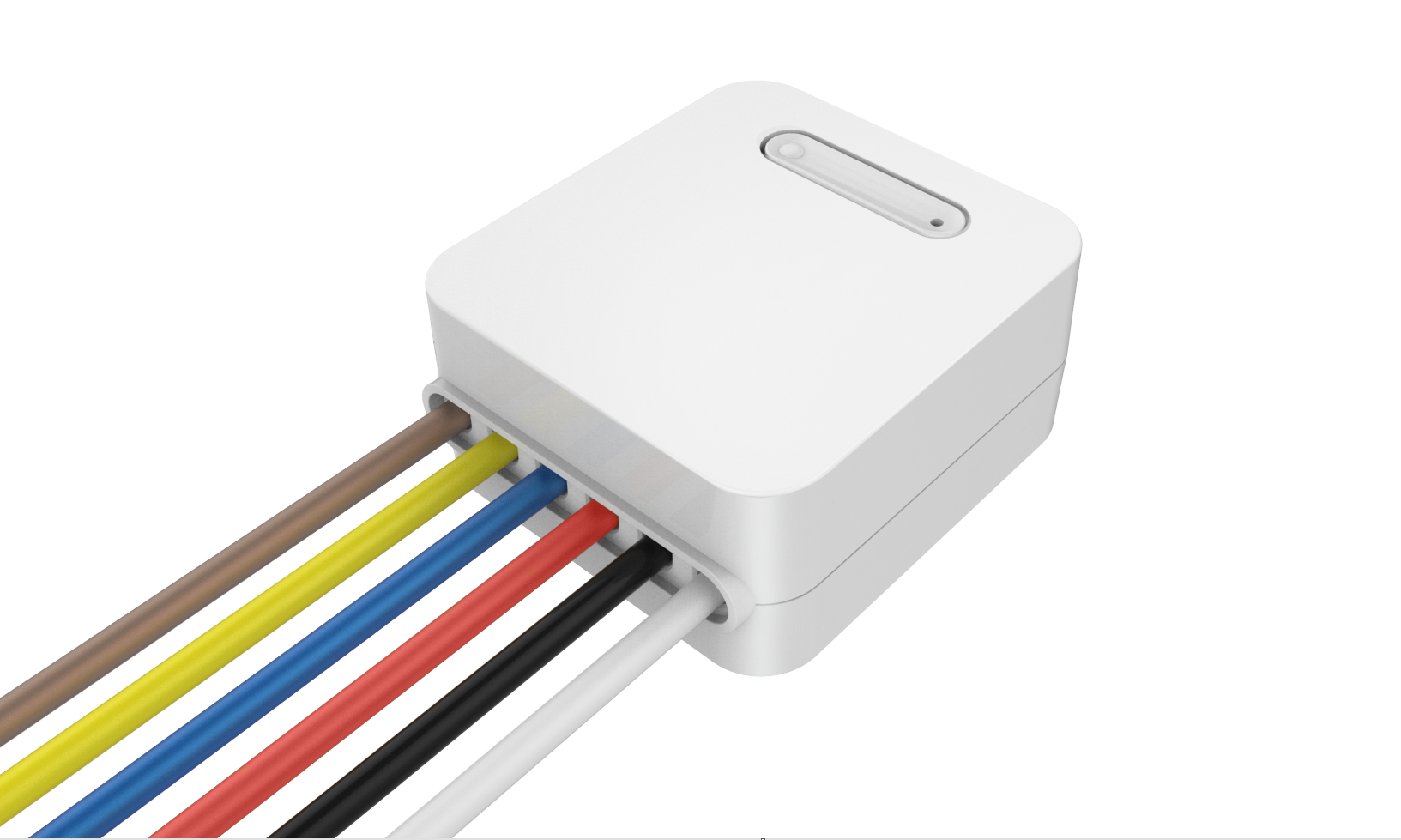

This DC Signal Detector is a smart module which makes your traditional smoke/ CO sensor particularly for Kidde and First Alert smart. It can monitor the activity of the smoke/CO sensor and have the info report ed to the connected gateway through z wave technology. So you will be notified anytime anywhere if there is a risk of fire or CO leak at your home.

Features:

• 800 series Z Wave chip and S2 based;
• SmartStart supported, scan and play;
• Works as a Z wave signal range extender;
• Long Range implemented (US frequency). Z Wave rang up to 1 mile line of sight;
• Z- Wave alerts from low voltage trigger signals
• Connect to smoke or CO detectors to monitor activity;
• Dry contact relay to control a security siren or lights


Specifications:

• Size: 37.8 x 34.8 x 18 mm
• AC 100~240V, 50/60Hz, 1.2A Max.
• Maximum Loads: AC 100 -240 V 50/ 60Hz, Maximum Loads 10A resistive, PF0.95min
• Working temperature: -10~50℃
• Working Humidity: Up to 90%
